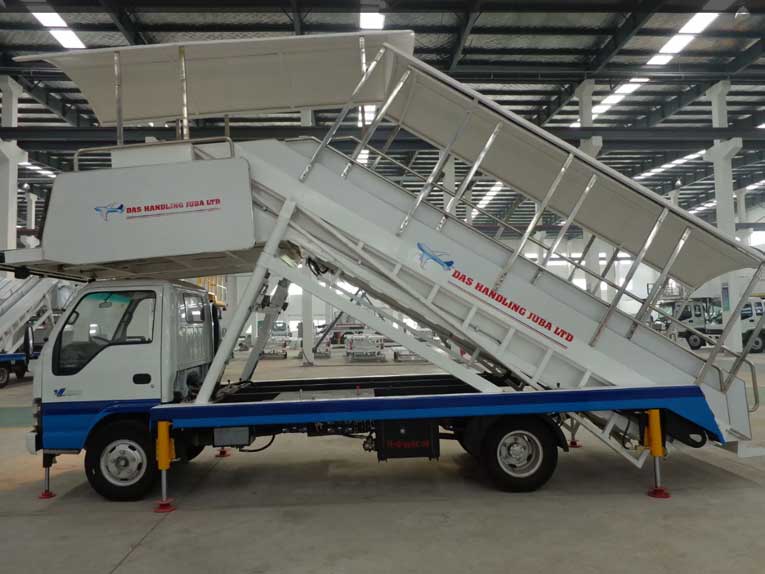

Aircraft Passenger Steps for Airports boarding platform | |
The Aircraft Passenger Steps for Airports is the component of the boarding platform that comes into direct contact with the aircraft. It consists of a fixed platform, a telescopic platform, sliding side doors and telescopic cylinders, and is rigidly connected to the upper part of the lift. To ensure the safety of the platform being close to the aircraft, an electrical limit switch is installed at the front end of the platform. Enable the platform to stop automatically and reliably when it is close to the ideal position of the aircraft. The telescopic platform can swing left and right. When the passenger elevator car does not align perpendicularly with the aircraft cabin door, it can automatically adjust the error between the platform and the cabin door. The sliding side door is used to adjust the gap caused by the extension and retraction of the telescopic platform. The fixation of the sliding side door adopts a mechanical positioning locking structure, which features convenient locking and opening, as well as safety and reliability The height of the Aircraft Passenger Steps for Airports lift platform from the ground is set at 2400mm to 5800mm, and it has a fine-tuning function that can adjust the height error between the passenger steps platform and the aircraft cabin door. It is applicable to the use of models such as A300, A310, A320, A330, A340, B737, B747, B757, B767, and B777 Aircraft Passenger Steps for Airports parameters Total length in mm: 7610 Total width (mm) : 2320 Total height (mm) : 3780 Wheelbase (mm) : 3815 Curb weight in kilograms: 7200 Front axle mass (unloaded) kg: 2580 Rear axle mass (unloaded) kg: 4120 Track length (front/rear) mm: 1504/1425 Minimum ground clearance in mm: 165 Maximum speed (km/h) : 80 The lifting height of the upper platform (mm) : 2400-5800 Maximum allowable passenger capacity (people) : 60 Step length (mm) : 270 The length of the upper platform is 2800 mm Step width (mm) : 1500 The width of the upper platform (mm) : 1500 Step height (mm) : 180 Number of steps (steps) : 29 Maximum inclination Angle (°) of the ladder: 39.5 The stroke of the telescopic platform is 300 mm The travel distance of the movable sliding door is 1000 mm Minimum turning radius (mm) : 8.6 The volume of the hydraulic oil tank L: 120 Diesel tank volume L: 120 Hydraulic system pressure Pa: 10 System voltage V: 12 Jiangsu Tianyi Aviation Industry Co., Ltd. Factory: No.2 Hang Kong Road High-tech zone, Jianhu county, Yancheng City, Jiangsu Province, P.R.China Shanghai Office: Room 1103, Building 35, No. 1399 Jiasong Middle Road, Qingpu District, Shanghai, China Tel: +86 21 50496068 / +86 21 50496058 / +86 400 9980 919 Mobile: +86 137 -6133 -5725 (As WeChat) +86-134 -7248 -8657 +86-195 -1651 -9903 +86-137 -7424 -8052 E_ mail: joinsun@jstianyi.com.cn airport.gse@jstianyi.com.cn Website: www.tianyi-gse.com  | |
