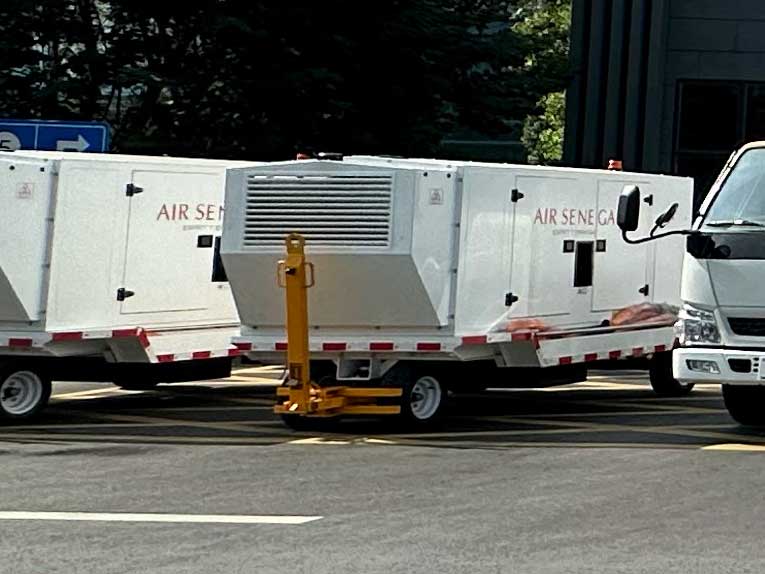

140KVA towed AC/DC ground power supply vehicle | |
The power supply unit of the towed aircraft power vehicle meets the power supply requirements of the on-board electrical system for 400Hz AC/DC models. The power supply vehicle is equipped with a complete protection and dynamic regulation system, which can meet the stability requirements of frequency and voltage for aircraft using medium-frequency power supply. This vehicle is composed of: an engine, a generator, a voltage regulation system, a frequency protection system, a voltage protection system, a load protection system, an output control system, an operating system, an output system and a trailer chassis, etc. The main performance of the generator a. Three-phase AC medium-frequency synchronous brushless generator (a well-known domestic brand) b. The rated speed of the generator is 1846 rpm, the rated power is ≥112kW, and the power factor is 0.8 3. Stability parameters of the output power supply 3.1 Voltage Regulation Capability: a. Voltage recovery time: 100 milliseconds to recover to rated voltage, ± 1% b. Transient voltage regulation rate: +/- 13.8%, suddenly increased from no-load to rated load c. Voltage modulation capacity: no more than +/- 1%, from no-load to rated load d. Steady-state voltage modulation rate: 0.5% e. Voltage imbalance: No more than 1% when the three-phase load is balanced, 30% of the rated load is loaded on any one phase, and no more than 4% when the other two phases are unloaded. 3.2 Voltage Waveform: a. Peak coefficient: 1.414 +/- 0.07 b. Harmonic content: The total harmonic content shall not exceed 2%. Under a power factor of 0.8 and linear load conditions, the harmonic content of any phase shall not exceed 1.5% c. It has the function of automatic cable voltage drop compensation, and the compensation value is greater than 5% of the rated voltage. 3.3 Requirements for Frequency Regulation Capability: a. Frequency modulation quantity: +/- 0.1%, from no-load to rated load to overload b. Overfrequency protection: 420 Hz, 5 seconds, automatically cuts off the power connection with the aircraft system, and the overvoltage indicator light is on. Jiangsu Tianyi Aviation Industry Co., Ltd. Factory: No.2 Hang Kong Road High-tech zone, Jianhu county, Yancheng City, Jiangsu Province, P.R.China Shanghai Office: Room 1103, Building 35, No. 1399 Jiasong Middle Road, Qingpu District, Shanghai, China Tel: +86 21 50496068 / +86 21 50496058 / +86 400 9980 919 Mobile: +86 137 -6133 -5725 (As WeChat) +86-134 -7248 -8657 +86-195 -1651 -9903 +86-137 -7424 -8052 E_ mail: joinsun@jstianyi.com.cn airport.gse@jstianyi.com.cn Website: www.tianyi-gse.com  | |
